SA-1000 Geodetic Antenna
우수한 수신성능을 보장하는 접시형 안테나.
-
GPS : L1/L2/L5
GLONASS : L1/L2
Galileo : E1/E5a/E5b/E6
BDS : B1/B2/B3
QZSS : L1/L2/L5/L6 -
LNA Gain : 40±2dB
-
Frequency Range : 1557～1612MHz & 1164～1278MHz
-
Dimension : Φ156×63.2mm
-
IP Rating : IP 67
SA-1000 Goedetic Antenna
Product Information
Product Model: SA-1000
Applicable Frequency Band: BDS: B1/B2/B3; GPS: L1/L2/L5 GLONASS: L1/ L2; Galileo: El/E5a/E5b/E6；QZSS：L1/L2/L5/L6
NGS Certificate: This antenna was certified NGS in 2021,
website link: https://geodesy.noaa.gov/ANTCAL/index.xhtml#
Product Usage
This antenna meets the current needs for multi-system compatibility and high-precision measurement. It is widely used in geodetic surveying, ocean survey, waterway survey,dredging survey, earthquake monitoring, landslide monitoring, bridge deformation monitoring,terminal container operations and other occasions.
Key Featureure
• Covers all frequency points of GPS L1/L2/L5, GLONASS L1/L2, BD2 B1/B2/B3, GALILEO E1/E2/E5/E6, QZSS：L1/L2/L5/L6 and supports Beidou-3 system.
• The multi-feed point design and completely symmetrical antenna structure realize the coincidence of the phase center and the geometric center. The phase center is stable and the positioning accuracy is high.
• Pre-filtering is used to effectively suppress out-of-band strong jamming signals, avoid amplifier saturation, and improve system reliability.
• Built-in lightning protection circuit effectively protects the amplifier and ensures normal operation in outdoor thunderstorm environments.
Reliability Structure
• Built-in voltage stabilizing circuit can operate normally within a wide input voltage range.
• Equipped with a breather valve to ensure that the internal and external air pressure is balanced when the antenna is working.
• IP67 meets the complex outdoor environment and can work normally outdoors for many years.
Electrical Specifications
Diagram
Installation

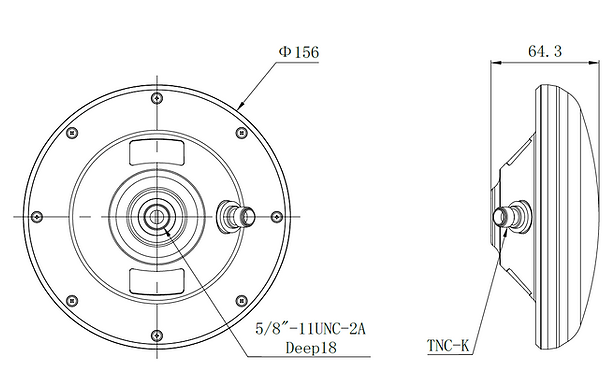

There is a metal nut insert at the bottom of the antenna, and the butt thread 5/8"-11UNC is connected and fixed to the carrier.
